Highbay Motion Sensor | Microwave Hibay motion sensor with Auto on/off Feature | IP65

The ESY-M15 Microwave Hibay Sensor is engineered to deliver smart lighting automation in expansive industrial environments. Designed for high ceilings and challenging conditions, this sensor offers seamless Auto On/Off functionality driven by precise microwave motion detection. Its rugged IP65-rated housing ensures durability against dust and water, making it ideal for warehouses, factories, and large commercial setups. With wide-angle coverage and flexible customization options, it maximizes both energy efficiency and operational convenience—all in a compact, easy-to-integrate form factor.

Technical Specifications:

• Operating Volt: 110-270V/AC

• Power Frequency: 50-60Hz

• Load Capacity: Max 1000 watt

• Ambient Light: 3-2000Lux (Adjustable)

• Detection Distance: 4-12 MeterØ(Adjustable)

• Installing Height: 4 - 15 Meter

• HF System: 5.8GHz CW radar, ISM band Rated

• Detection Angle: 360°

• Protection level: IP65

• Weight: 450 Grams
• Hold Time: 5s, 30s, 90s, 3min, 5min, 10min, 20min, 30min (choice)

• Stand-by Period: 10s, 1min, 5min, 10min, 30min, 60min, +∞, Os (choice)

• Detection Range: 50% - 100% (Adjustable)

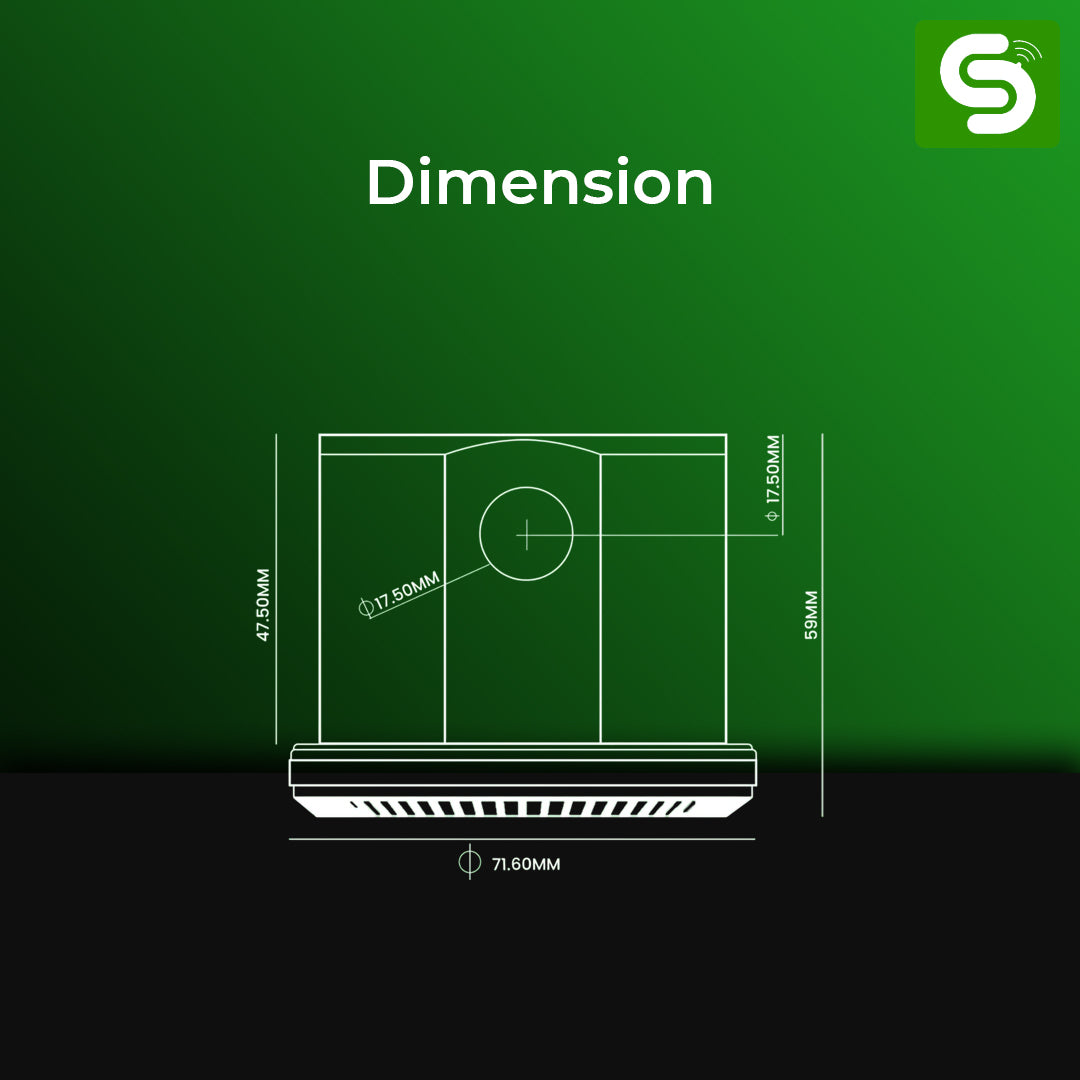

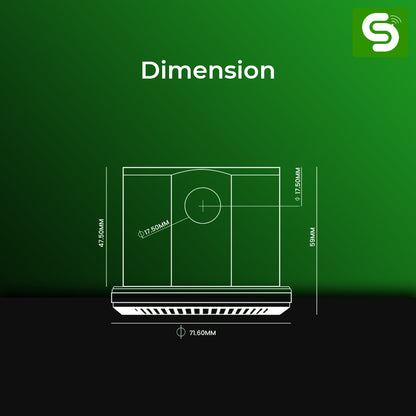

• Size: 59H x ø71.5D mm
• Packed & Marketed By: Esysense Tech Innovation Pvt. Ltd.
• Country of Origin : China
