4-Way Remote Control Switch | ESY-TC35
4-Way Remote Control Switch | ESY-TC35
SKU:ESY-TC35
Couldn't load pickup availability
Product Overview

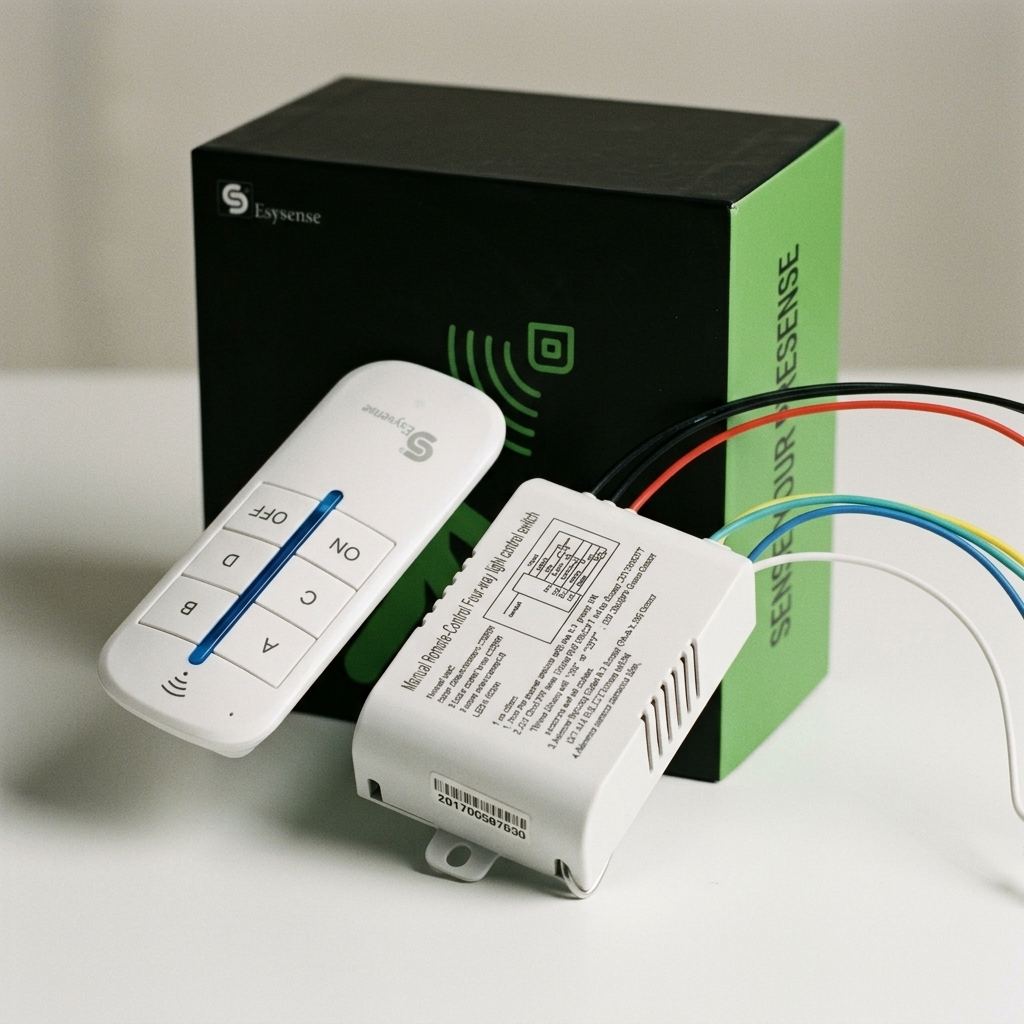

The Esysense ESY-TC35 4-Way Remote Control Switch is a versatile control module designed to add convenient automation to residential and commercial electrical fixtures. Engineered for flexible operation, the device supports dual control modes — manual press control and head/gesture sensor activation, enabling users to operate connected devices effortlessly. The switch allows reliable remote operation within a control distance of up to 8–15 meters, making it suitable for managing multiple lighting zones, ceiling fans, and small electrical appliances from a single control point. Designed to operate across a wide 110–240V AC voltage range, the ESY-TC35 ensures stable performance in standard electrical systems. Its compact 70 × 70 × 30 mm housing allows easy integration into existing switchboards or concealed electrical setups, providing a practical upgrade to modern home and office automation without complex installation or programming.
Technical Specifications:
- Model: ESY-TC35
- Control Modes: Manual press + Head control (gesture/IR sensor)
- Voltage Range: 110–240V AC
- Control Distance: 8–15 meters
- Switch Type: 4-way remote control

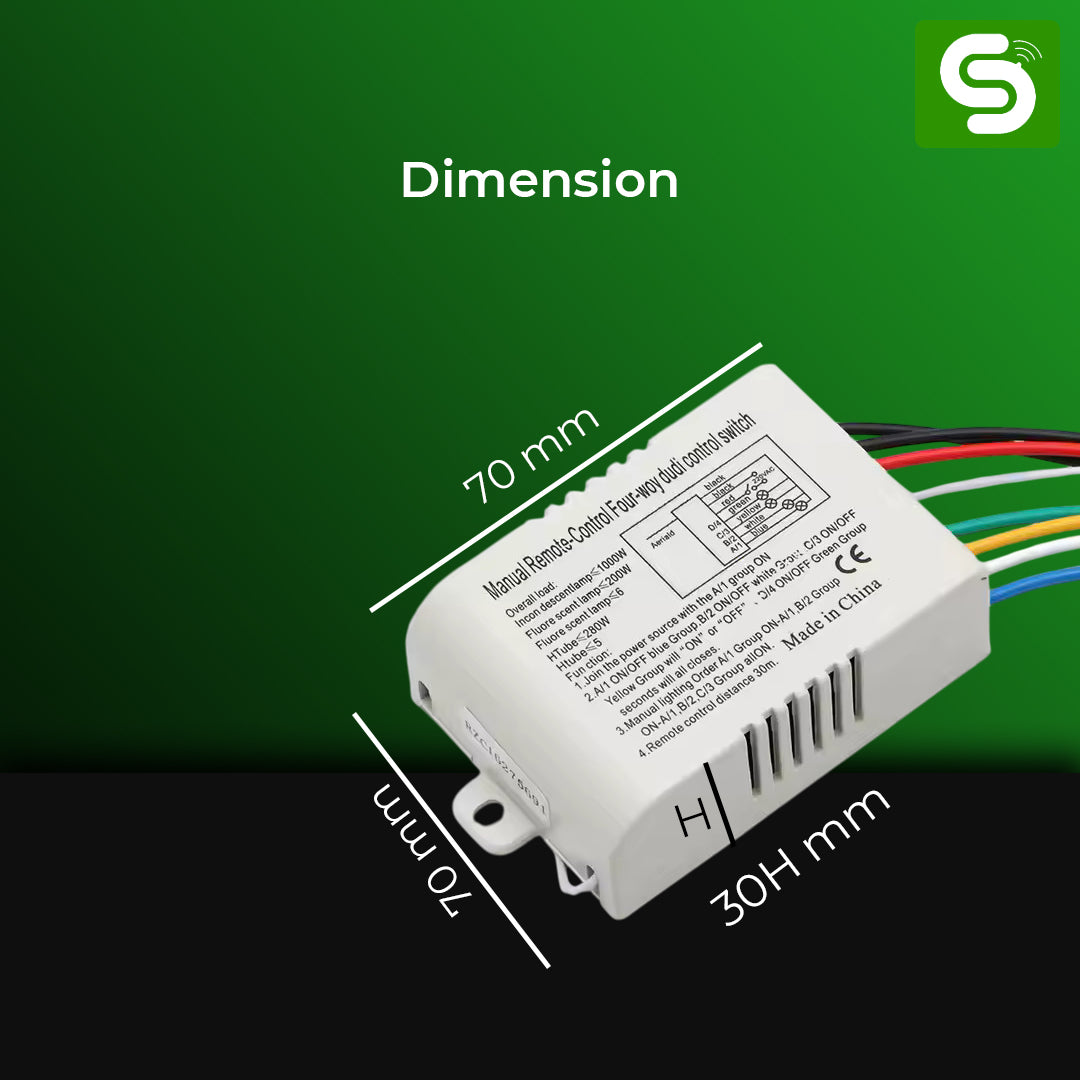

- Body Dimensions: 70L x 70B x 30H mm
- Protection Rating: IP20 (indoor only)
- Weight: 350 Grams
- Recommended Use: Lighting systems, fans, and small electrical appliances
- Country of Origin : China
- Packed & Marketed By: Esysense Tech Innovation Pvt. Ltd.
Contact Support Team
+91 74283 89555 | +91 74283 81555
Register your Product
Register Warranty Terms of Serivce
ESYSENSE 4-Way Remote Control Switch
Control up to 4 lights, fans, or electrical appliances with a single wireless remote. The ESYSENSE 4-Way Remote Control Switch offers easy installation, reliable RF technology, and seamless operation for homes and commercial spaces.
Control 4 Devices with One Remote
Smart Wireless Switching for Everyday Convenience
Operate lights, ceiling fans, wall lamps, chandeliers, and other electrical appliances effortlessly with the ESYSENSE 4-Way Remote Control Switch. Powered by reliable RF technology, it offers seamless wireless control, easy installation, and a clutter-free smart living experience.
Key Highlights
- Controls up to 4 devices independently
- Reliable long-range RF wireless technology
- Compatible with lights, fans & appliances
- Quick retrofit installation
- No Wi-Fi or internet required
- deal for homes, offices & commercial spaces

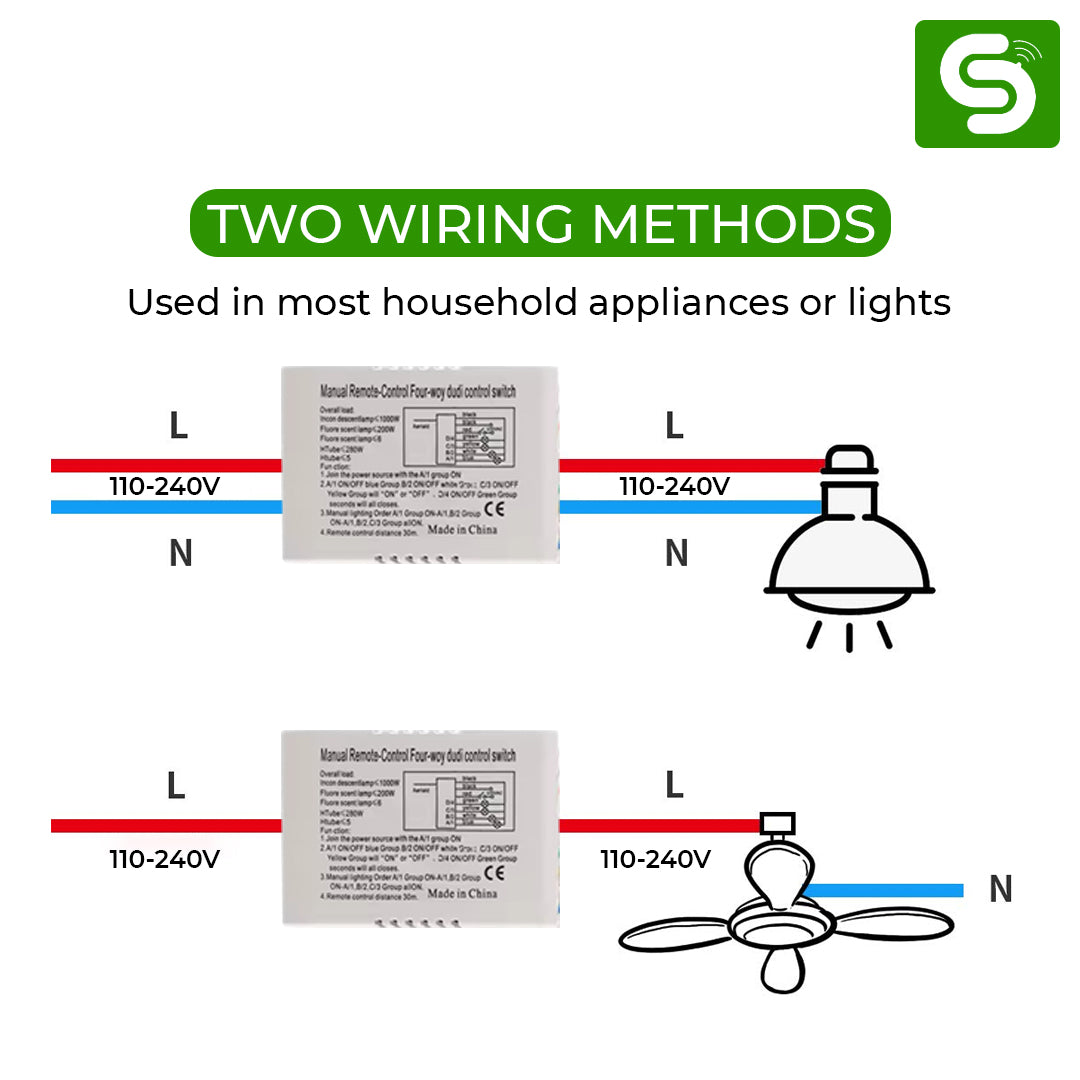

How to Connect Your ESY-TC35 — Simple Wiring Guide
The ESY-TC35 is designed for quick, hassle-free installation inside your existing switchboard or junction box. Follow the diagram and the steps below to get your 4-channel remote control switch up and running in minutes.
Understanding the Terminals
Terminal What to Connect
- L (Line/Live) : Incoming 230V AC Live wire
- N (Neutral) : Incoming 230V AC Neutral wire
- OUT 1 – OUT 4 Load output for each channel (light/fan/device)
Step-by-Step Connection
Step 1 — Connect the Power Supply
Connect the (L) and (N) wires from your mains supply (110–240V AC) to the corresponding terminals on the receiver module. This powers the ESY-TC35.
Step 2 — Connect Your Loads
Connect each appliance (light, fan, or fixture) to its respective output terminal — OUT 1, OUT 2, OUT 3, OUT 4.
Step 3 — Pair the Remote & Test
Power ON the circuit. Your remote and receiver come pre-paired out of the box. Press any button on the remote — your connected device should respond instantly within 8–15 metres range.
