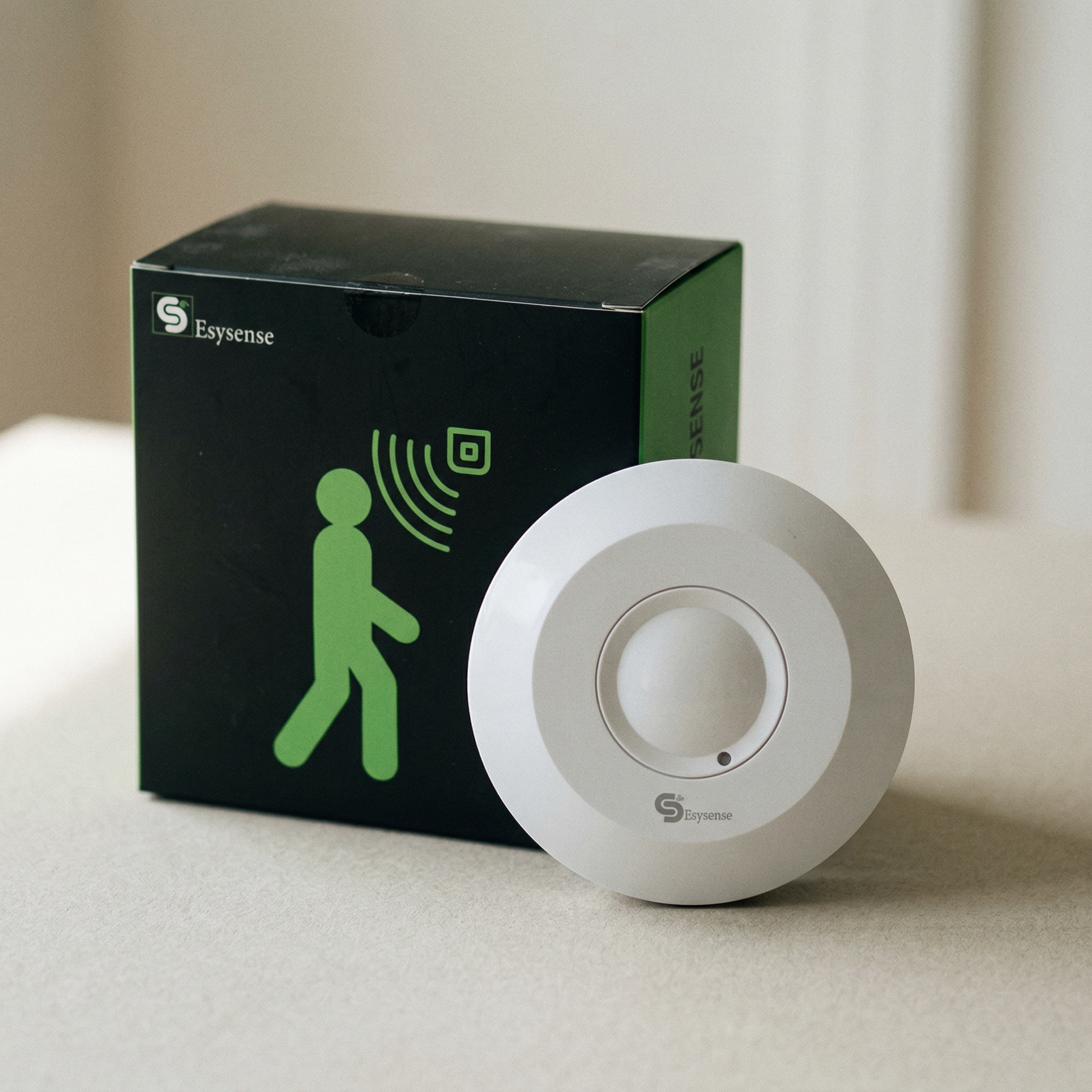

Radar Motion Sensor, 360° detection, ESY-M10

Product Overview

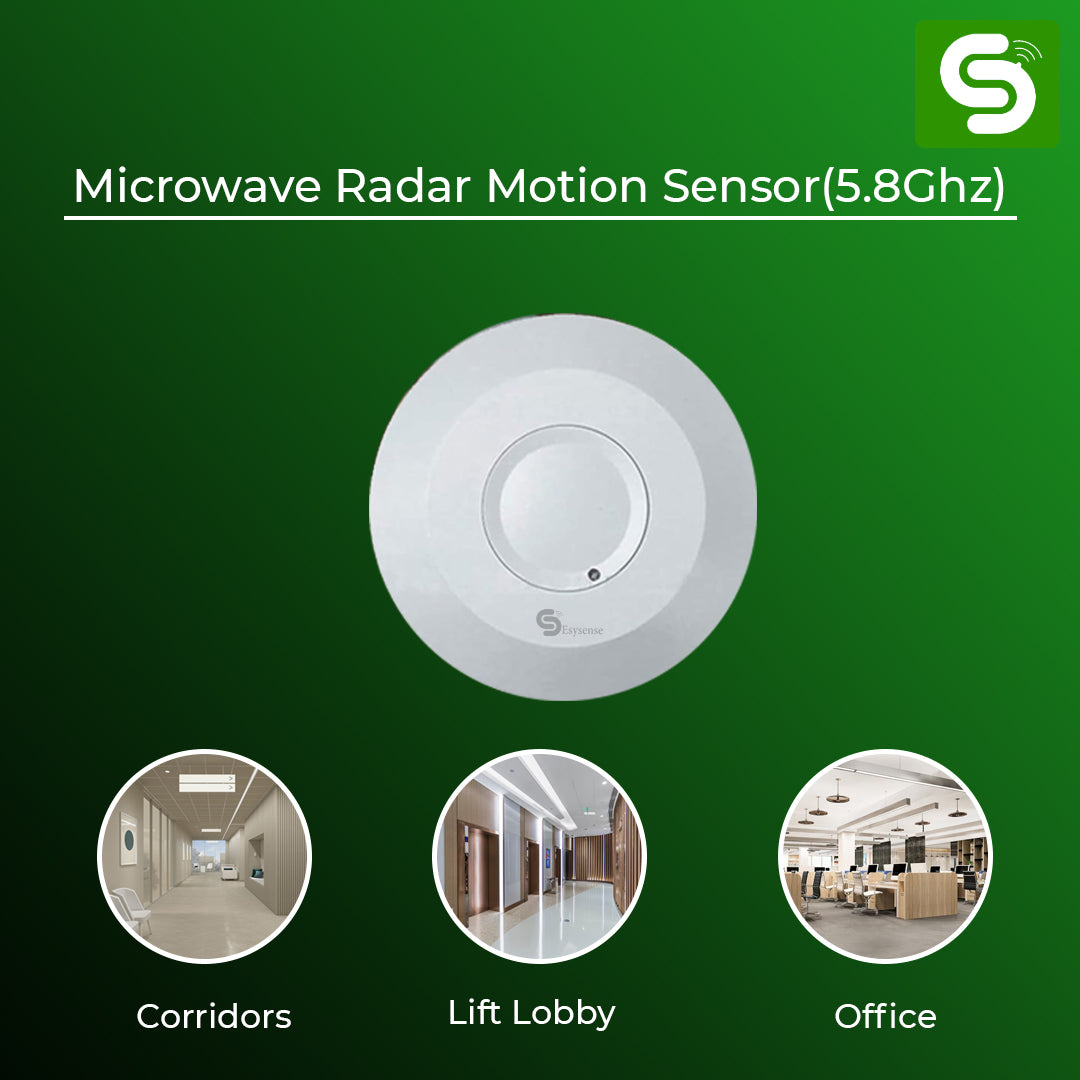

The Esysense ESY-M10 Radar Motion Sensor Switch is an advanced lighting automation device powered by 5.8GHz CW microwave radar sensing technology, designed for highly reliable motion detection in complex indoor environments. Unlike conventional PIR sensors, the radar-based detection system operates independently of temperature variations, significantly reducing false triggers and ensuring stable performance. The sensor provides a 360° detection angle with an adjustable sensing range from 1 to 8 meters, making it suitable for corridors, office lobbies, staircases, and partitioned workspaces. It also features adjustable time delay (10 seconds to 12 minutes) and ambient light sensitivity (3–2000 LUX), allowing precise control over lighting activation based on motion and surrounding light conditions. With a maximum load capacity of 300W and a surface-mount installation design, the ESY-M10 offers a durable, maintenance-free solution for intelligent lighting control in residential, commercial, and institutional settings.

Key Features & Specifications:

• Operating Volt: 220-270V/AC

• Power Frequency: 50-60Hz

• Load Capacity: 300w

• Ambient Light: 3-2000Lux (Adjustable)

• Time Delay: 10sec - 12min (Adjustable)

• Detection Distance: 1-8 MeterØ(Adjustable)

• Installing Height: 2 - 4 Meter

• HF System: 5.8GHz CW radar, ISM band Rated

• Detection Angle: 360°

• Protection level: IP20

• Weight: 450 Grams
• Mounting Type: Surface Mount

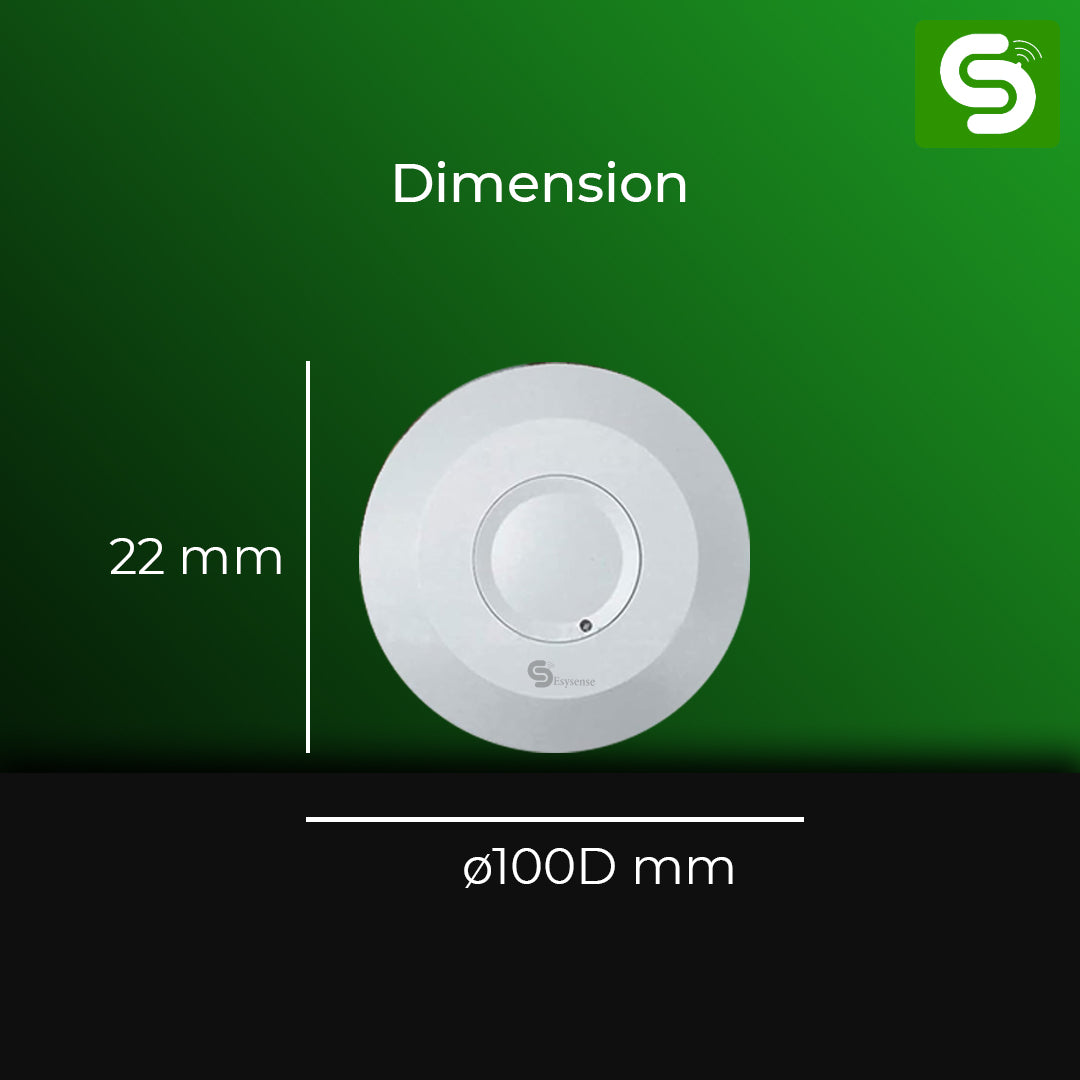

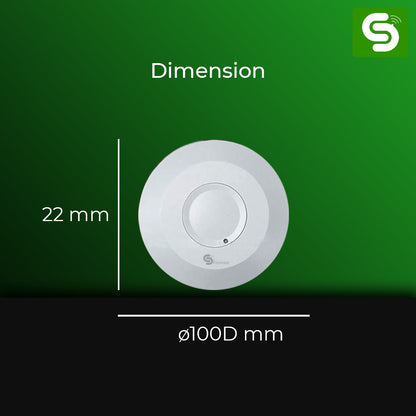

• Size: 22H x ø100D mm
• Packed & Marketed By: Esysense Tech Innovation Pvt. Ltd.
• Country of Origin : China
