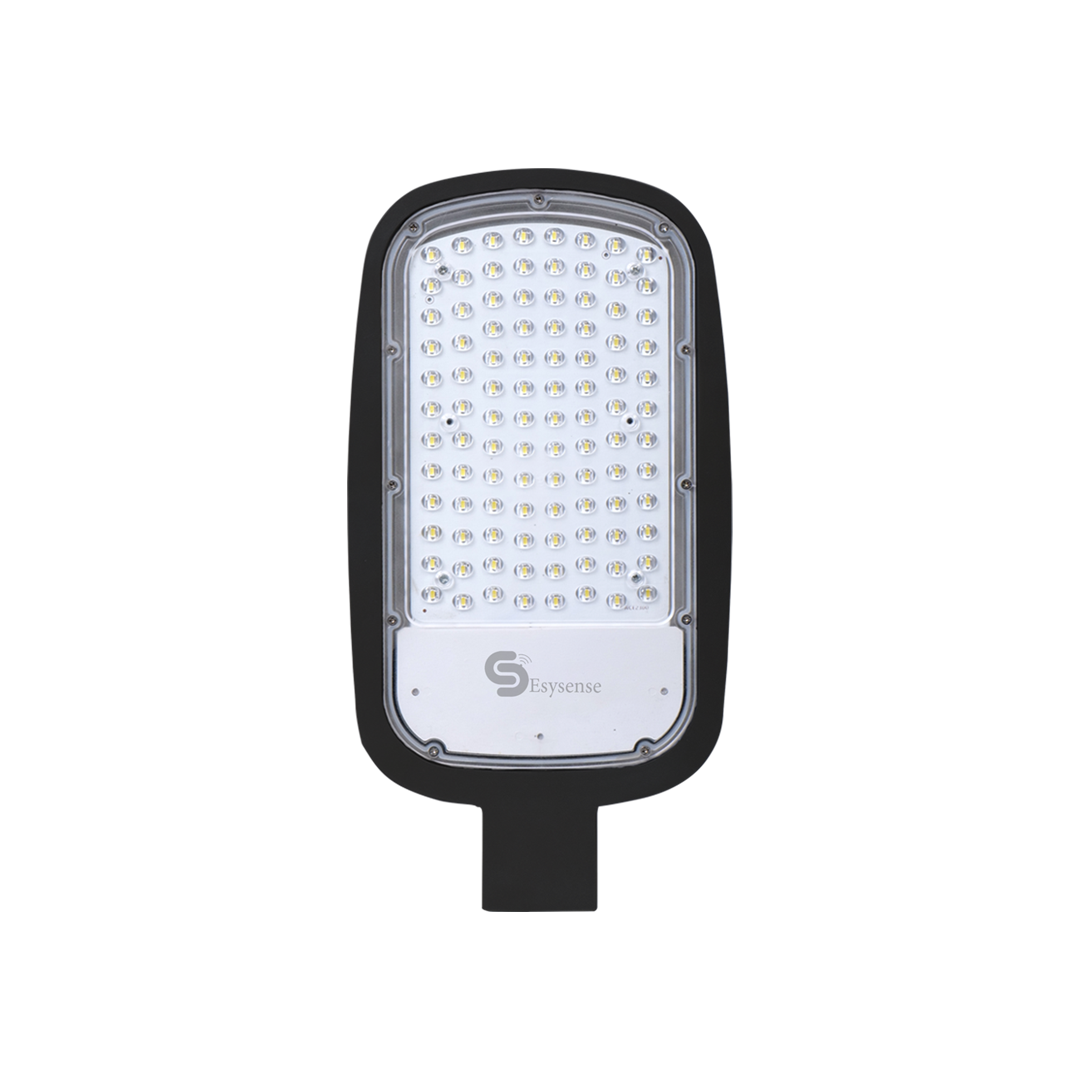

Motion sensor Street Light, Auto Dimmable + Daynight | IP65 | 50W
Motion sensor Street Light, Auto Dimmable + Daynight | IP65 | 50W
SKU:ESY-L50STED
Couldn't load pickup availability
Product Overview

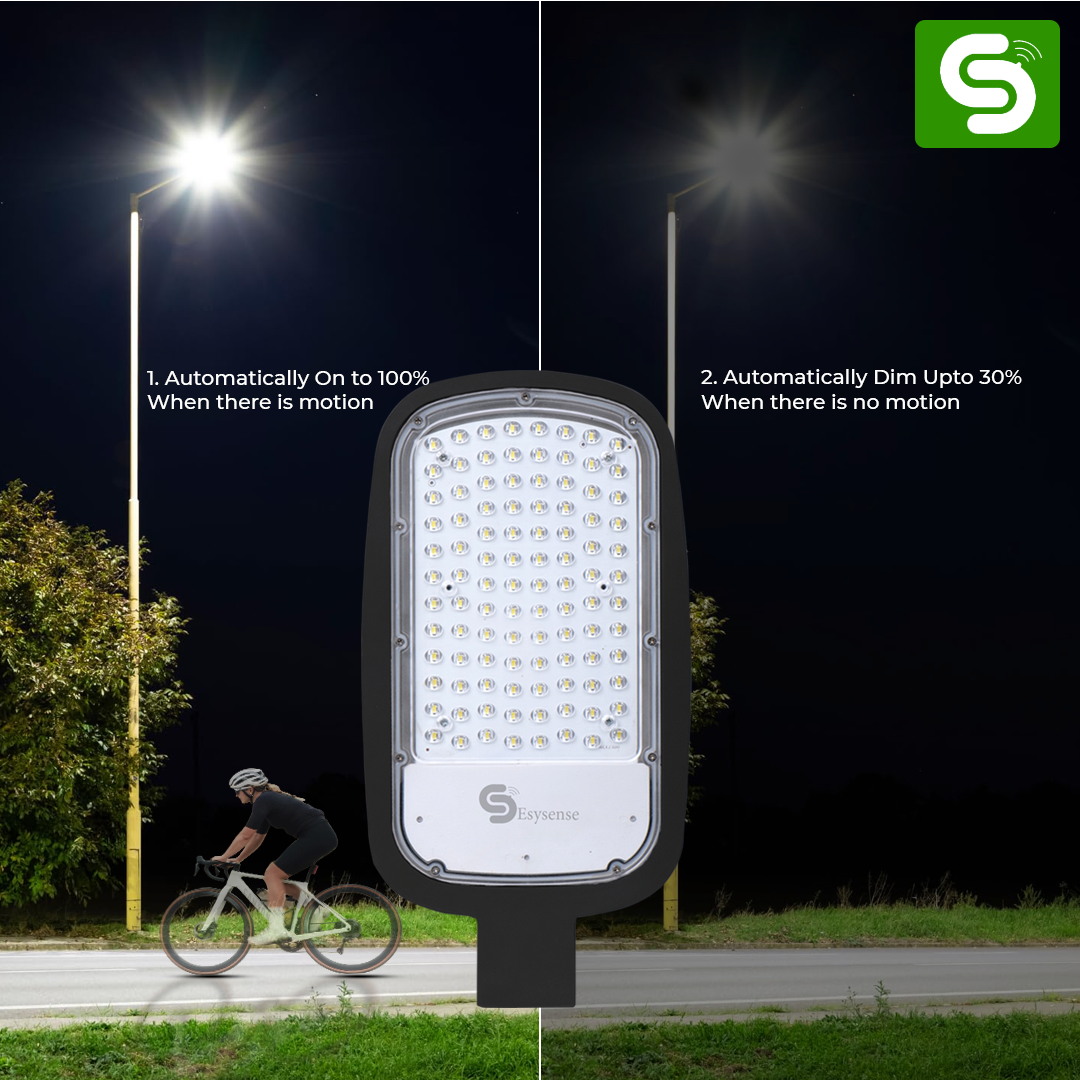

The Esysense 50W Motion Sensor LED Street Light is a high-performance outdoor lighting solution designed for enhanced security and maximum energy efficiency. Engineered with intelligent radar-based motion sensing and integrated day-night functionality, this fixture provides automated illumination—detecting movement up to 10 meters away to deliver high-intensity lighting when required and dimming during periods of inactivity. Housed in a robust, weather-resistant chassis with an IP65 ingress protection rating, the unit ensures reliable, all-weather performance in demanding outdoor environments such as industrial zones, parking lots, and warehouses. Delivering a crisp 6500K cool white output, this street light is the ideal choice for high-visibility safety and sustainable, long-term operation.
Technical Specifications:
- Functionality : Auto Dimmable + Daynight Functionality
- Detection Range : Upto 10m
- Delay Time : Upto 30Sec
- IP Rating : IP65
- Detection Angle : 360°
- Input Voltage : 220 - 270 V/AC
- Wattage : 50W
- Pole Height : 6000mm
- Weight: 1.46 kg
- Packed and Marketed by : Esysense Tech Innovations Pvt Ltd
- Manufactured By : IPREALM Technologies Pvt Ltd
- Country of Origin : India
Contact Support Team
+91 74283 89555 | +91 74283 81555
Register your Product
Register Warranty Terms of Serivce
ESYSENSE 4-Way Remote Control Switch
Control up to 4 lights, fans, or electrical appliances with a single wireless remote. The ESYSENSE 4-Way Remote Control Switch offers easy installation, reliable RF technology, and seamless operation for homes and commercial spaces.
Control 4 Devices with One Remote
Smart Wireless Switching for Everyday Convenience
Operate lights, ceiling fans, wall lamps, chandeliers, and other electrical appliances effortlessly with the ESYSENSE 4-Way Remote Control Switch. Powered by reliable RF technology, it offers seamless wireless control, easy installation, and a clutter-free smart living experience.
Key Highlights
- Controls up to 4 devices independently
- Reliable long-range RF wireless technology
- Compatible with lights, fans & appliances
- Quick retrofit installation
- No Wi-Fi or internet required
- deal for homes, offices & commercial spaces
How to Connect Your ESY-TC35 — Simple Wiring Guide
The ESY-TC35 is designed for quick, hassle-free installation inside your existing switchboard or junction box. Follow the diagram and the steps below to get your 4-channel remote control switch up and running in minutes.
Understanding the Terminals
Terminal What to Connect
- L (Line/Live) : Incoming 230V AC Live wire
- N (Neutral) : Incoming 230V AC Neutral wire
- OUT 1 – OUT 4 Load output for each channel (light/fan/device)
Step-by-Step Connection
Step 1 — Connect the Power Supply
Connect the (L) and (N) wires from your mains supply (110–240V AC) to the corresponding terminals on the receiver module. This powers the ESY-TC35.
Step 2 — Connect Your Loads
Connect each appliance (light, fan, or fixture) to its respective output terminal — OUT 1, OUT 2, OUT 3, OUT 4.
Step 3 — Pair the Remote & Test
Power ON the circuit. Your remote and receiver come pre-paired out of the box. Press any button on the remote — your connected device should respond instantly within 8–15 metres range.
