Product Overview

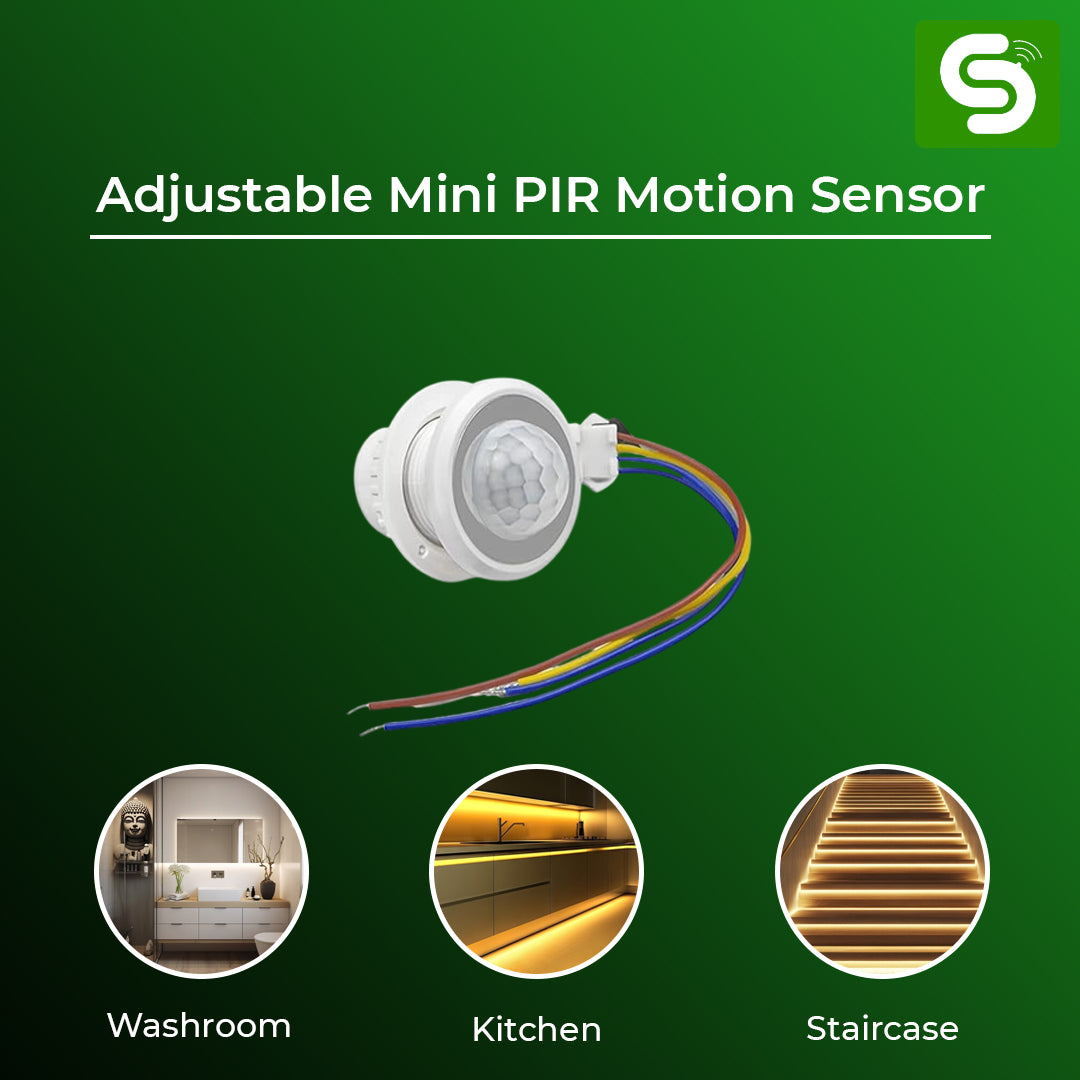

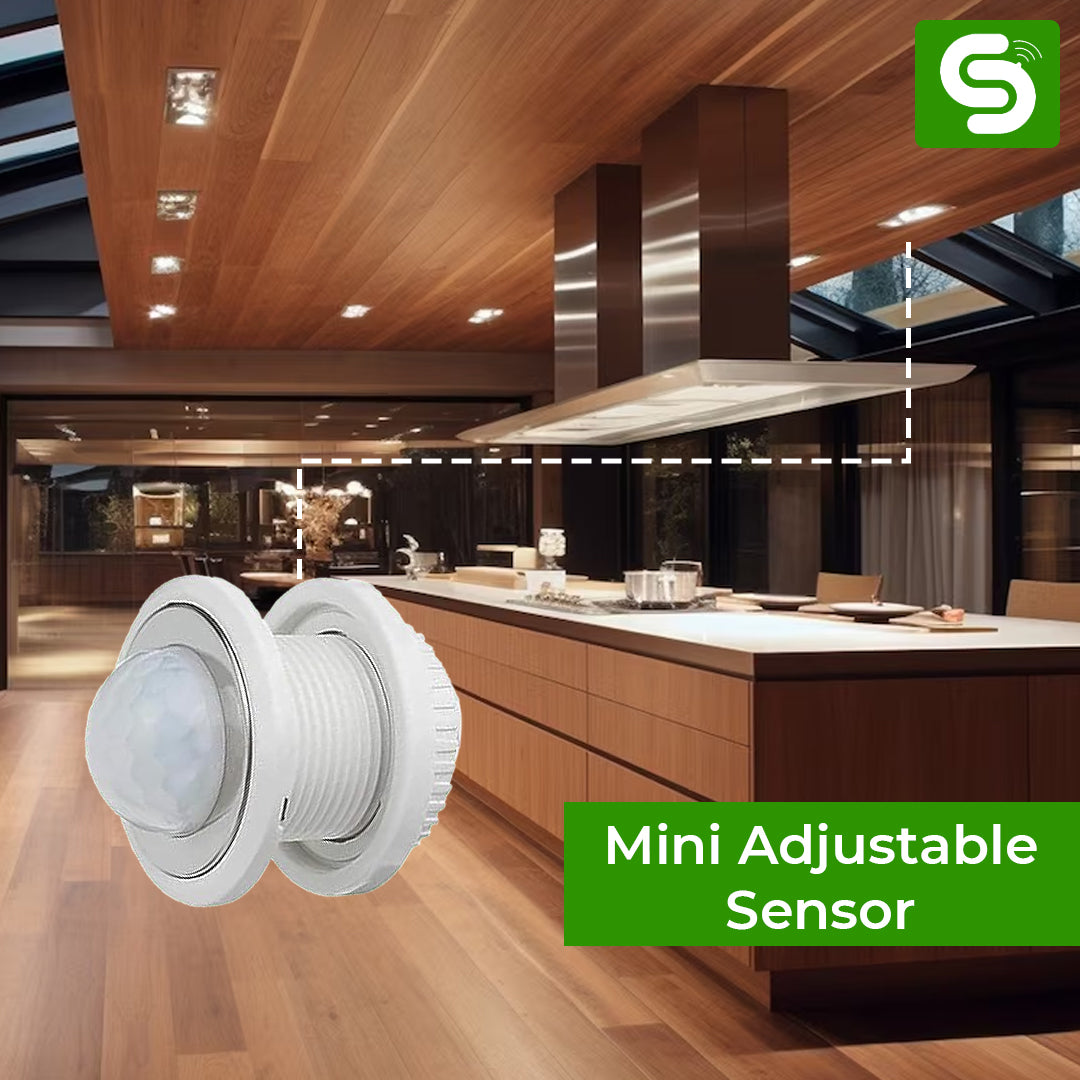

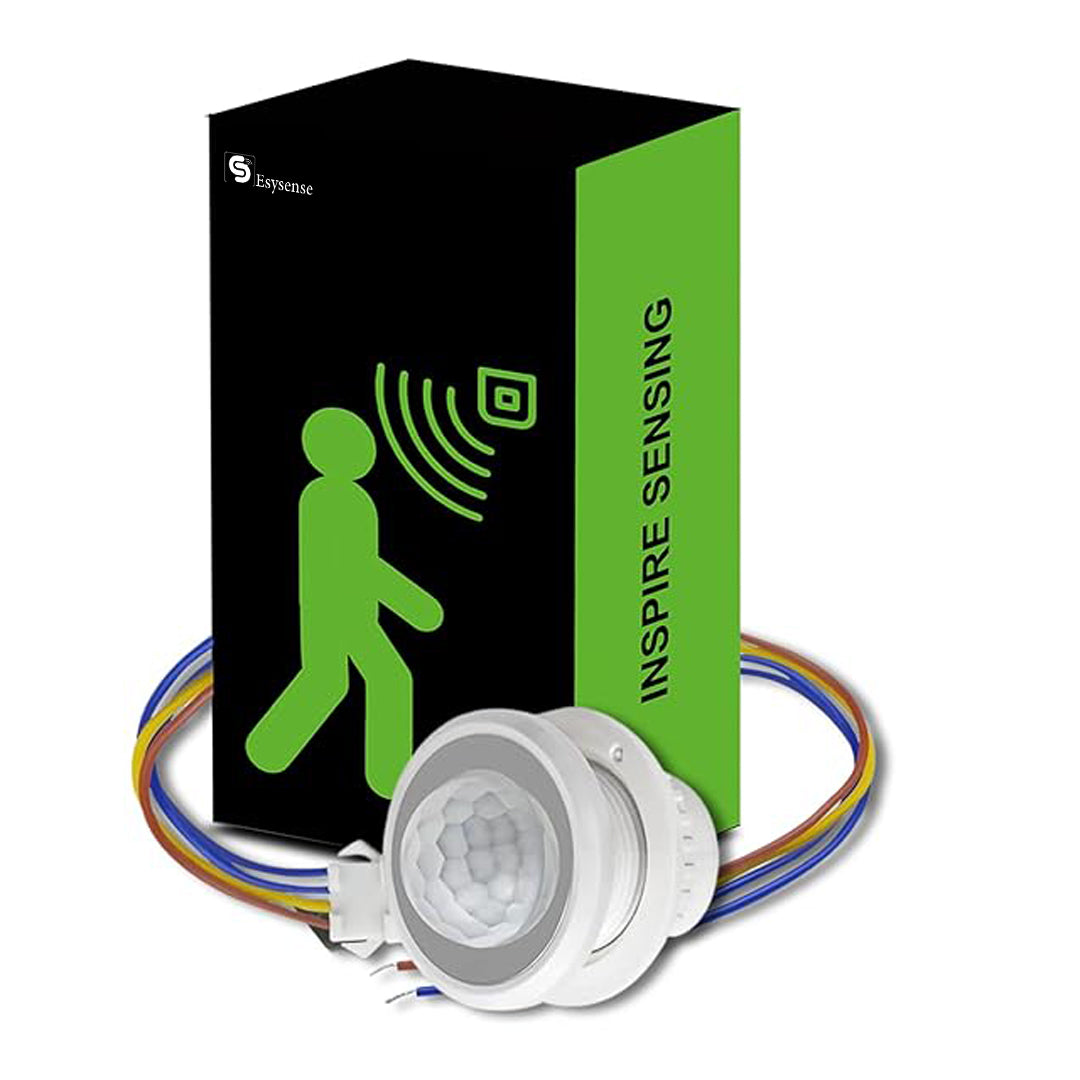

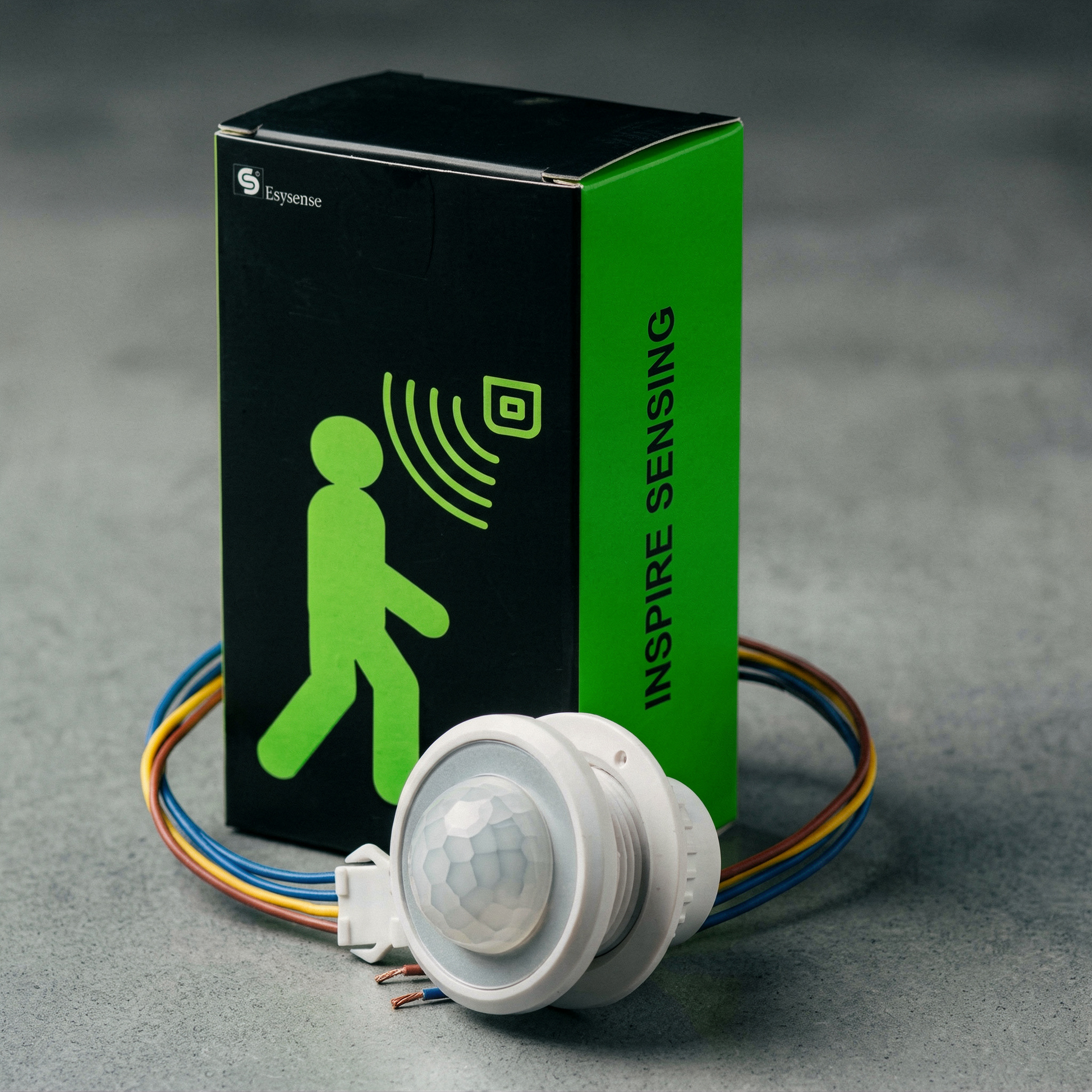

The Esysense ESY-P08 Mini PIR Motion Sensor is a compact and high-efficiency motion detection module designed for discreet and intelligent lighting automation in modern indoor environments. Built with advanced Passive Infrared (PIR) sensing technology, the sensor detects human motion within a 120° detection angle and up to 3–5 meter sensing range, automatically controlling connected lighting fixtures for improved convenience and energy efficiency. Its minimal 30 mm cut-out design allows seamless recessed installation, making it ideal for applications where aesthetics and minimal hardware visibility are important. The sensor supports multiple adjustable delay time settings (15 sec, 45 sec, and 5 min) along with an integrated Day/Night LUX control, enabling the lighting system to operate only under desired ambient light conditions. Compatible with a wide 110–240V AC operating voltage, the ESY-P08 offers reliable performance for closets, corridors, restrooms, cabinets, and other indoor spaces requiring automatic lighting control.

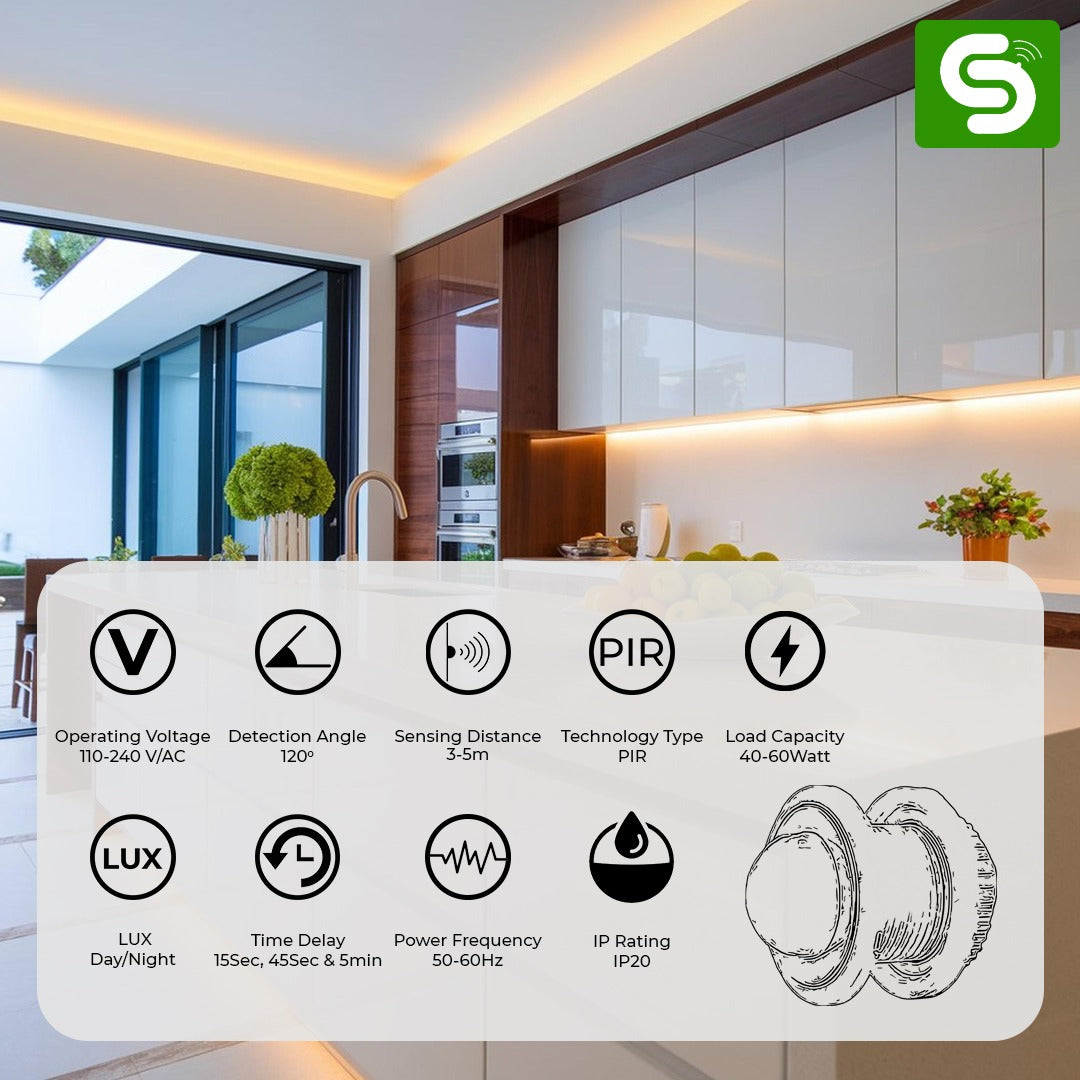

Technical Specifications:
- Model: ESY-P08
- Delay Time : 15 sec, 45 sec, 5 min
- Operating Voltage : 110-240V/AC
- Power Frequency : 50-60Hz
- Sensing Distance : 3-5 Meter diameter
- Detection Angle : 120°
- Rated Load : 40-60Watt
- Technology Type : PIR
- Weight: 150 Grams
- Ambient Light : LUX Day/Night
- Protection Level : IP20
- Cut Size : 30mm

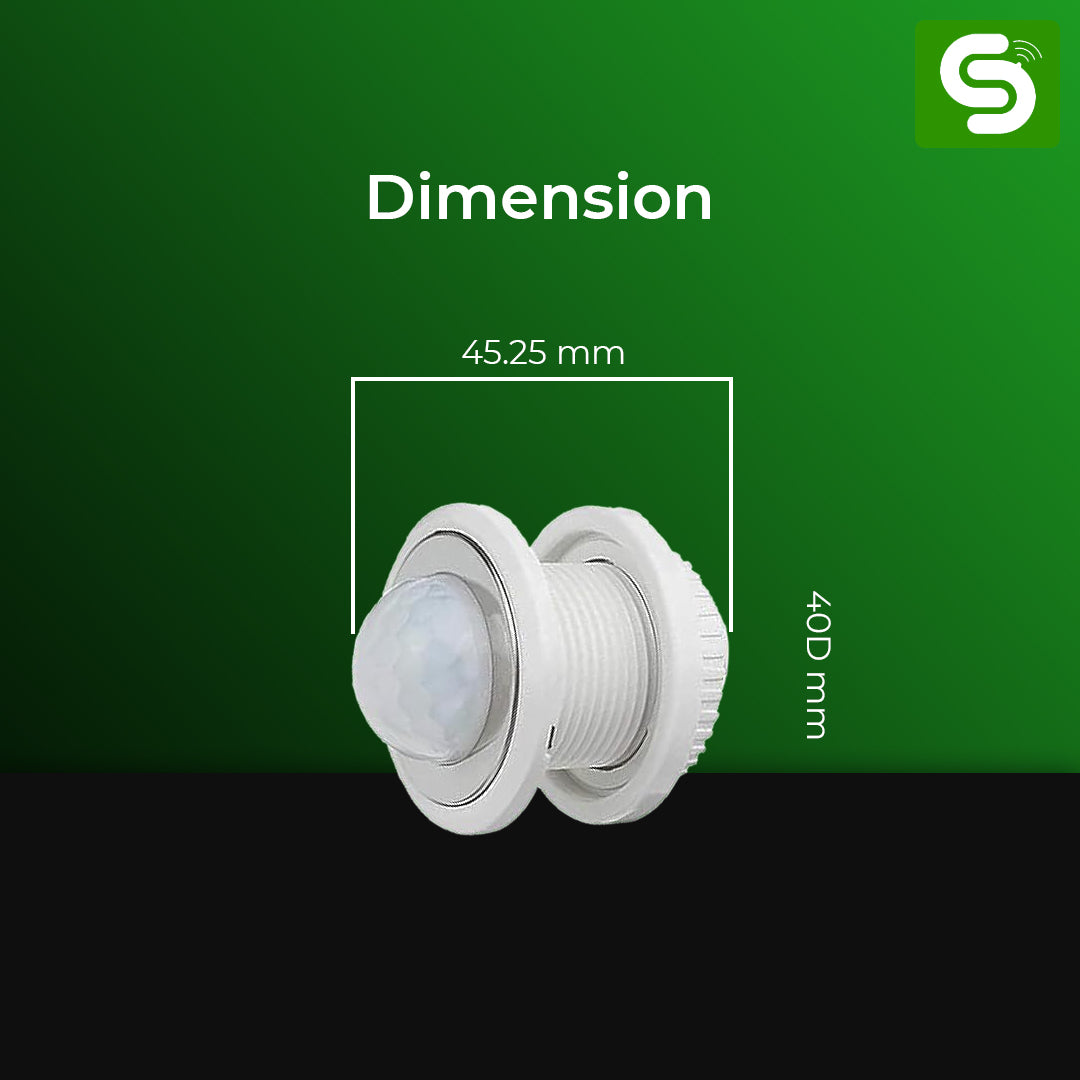

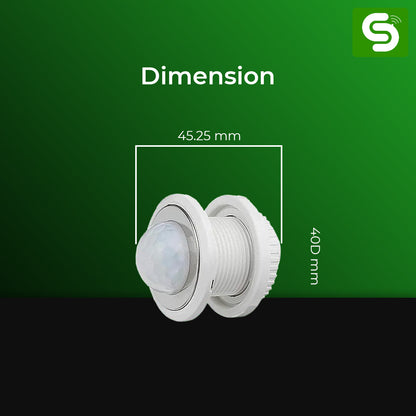

- Size : 45.25H X 40⌀ (Diameter) mm
- Packed & Marketed By: Esysense Tech Innovation Pvt. Ltd.
- Country of Origin : China
Smart Motion & Presence Detection
Smart Motion & Presence Detection
Equipped with advanced PIR and microwave sensor technologies, Esysense products detect motion and occupancy with precision — enabling automated lighting and enhancing security in homes, offices, and outdoor spaces.
Intelligent Lighting with in-Built Sensor
Intelligent Lighting with in-Built Sensor
Esysense sensor-based lighting combines high-efficiency LED technology with integrated motion and ambient light sensors, delivering automatic illumination only when needed. This smart solution ensures maximum energy savings, extended product life, and hands-free convenience in both residential and commercial settings.
Easy Installation & Versatile Use
Easy Installation & Versatile Use
With user-friendly, plug-and-play designs and adjustable settings, Esysense sensors are ideal for various indoor and outdoor applications — including corridors, washrooms, staircases, parking areas, and commercial buildings.
