Microwave Motion Sensor | ESYSENSE Surface mount Microwave Motion Sensor | ESY-M26

Microwave Motion Sensor, engineered to provide efficient and responsive motion detection through advanced 5.8GHz CW radar technology. Its 360° detection angle and adjustable sensing range of 1 to 9 meters allow for adaptable performance in spaces such as hallways, stairwells, and utility rooms. Designed for surface mounting at heights between 2.3 to 4 meters, the sensor offers flexible installation while maintaining a minimal footprint. With user-adjustable settings for time delay and ambient light sensitivity, the ESY-M26 optimizes energy savings by activating lighting only when needed. Compact yet powerful, this IP20-rated sensor delivers smart detection in a discreet form.

Technical Specifications:

• Detection Angle: 360°

• Operating Volt: 110-270V/AC

• Power Frequency: 50-60HZ

• HF System: 5.8GHz CW radar, ISM band Rated

• Detection Distance: 1- 9 Meterø(Adjustable)

• Time Delay: 5sec - 30 min (Adjustable)

• Ambient Light: 2 - 50Lux (Adjustable)

• Installing Height: 2.3 - 4 Meter

• Protection level: IP20

• Weight: 400 Grams
• Mounting Type: Surface Mount

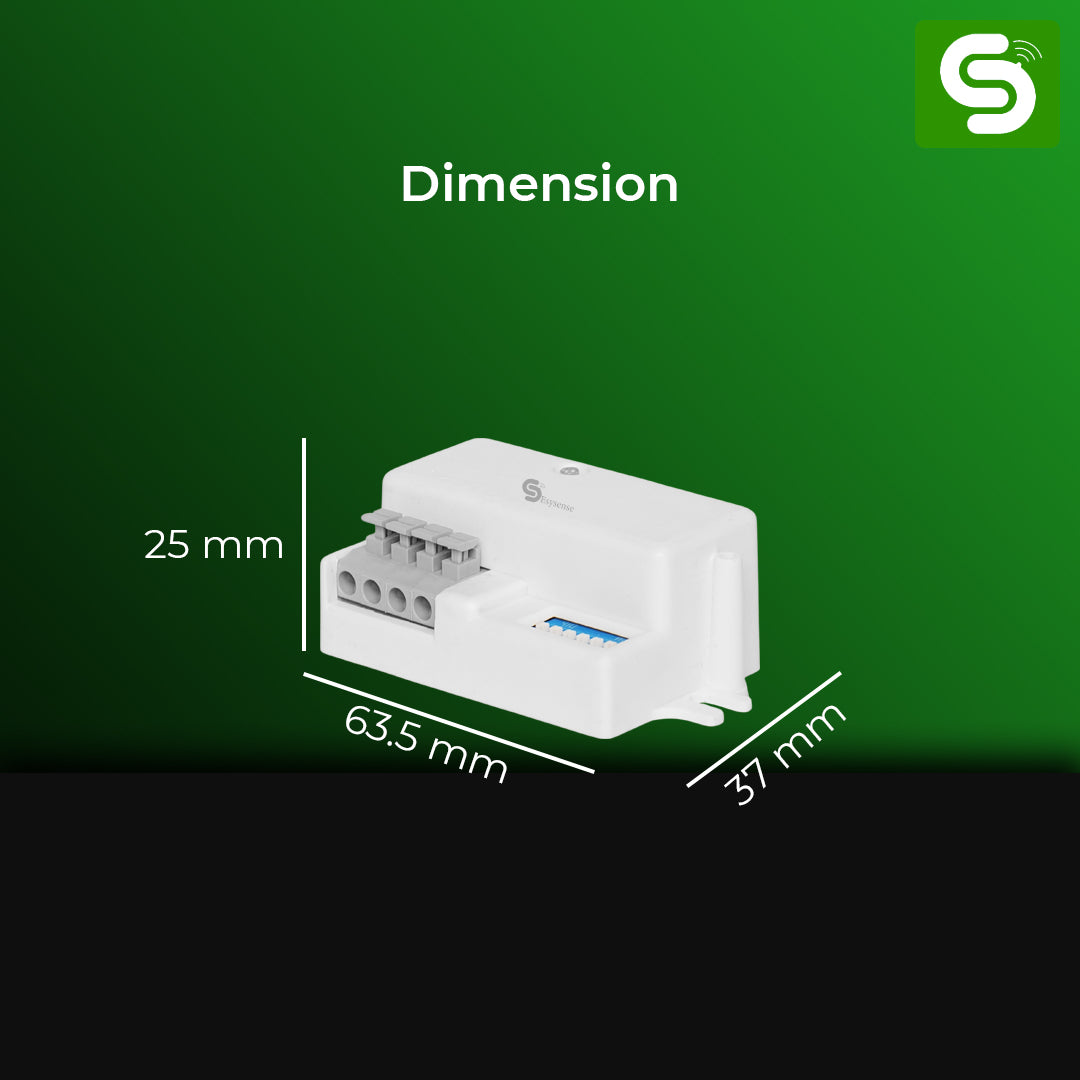

• Size: 63.5L x 37B x 25H mm
• Packed & Marketed By: Esysense Tech Innovation Pvt. Ltd.
• Country of Origin : China
