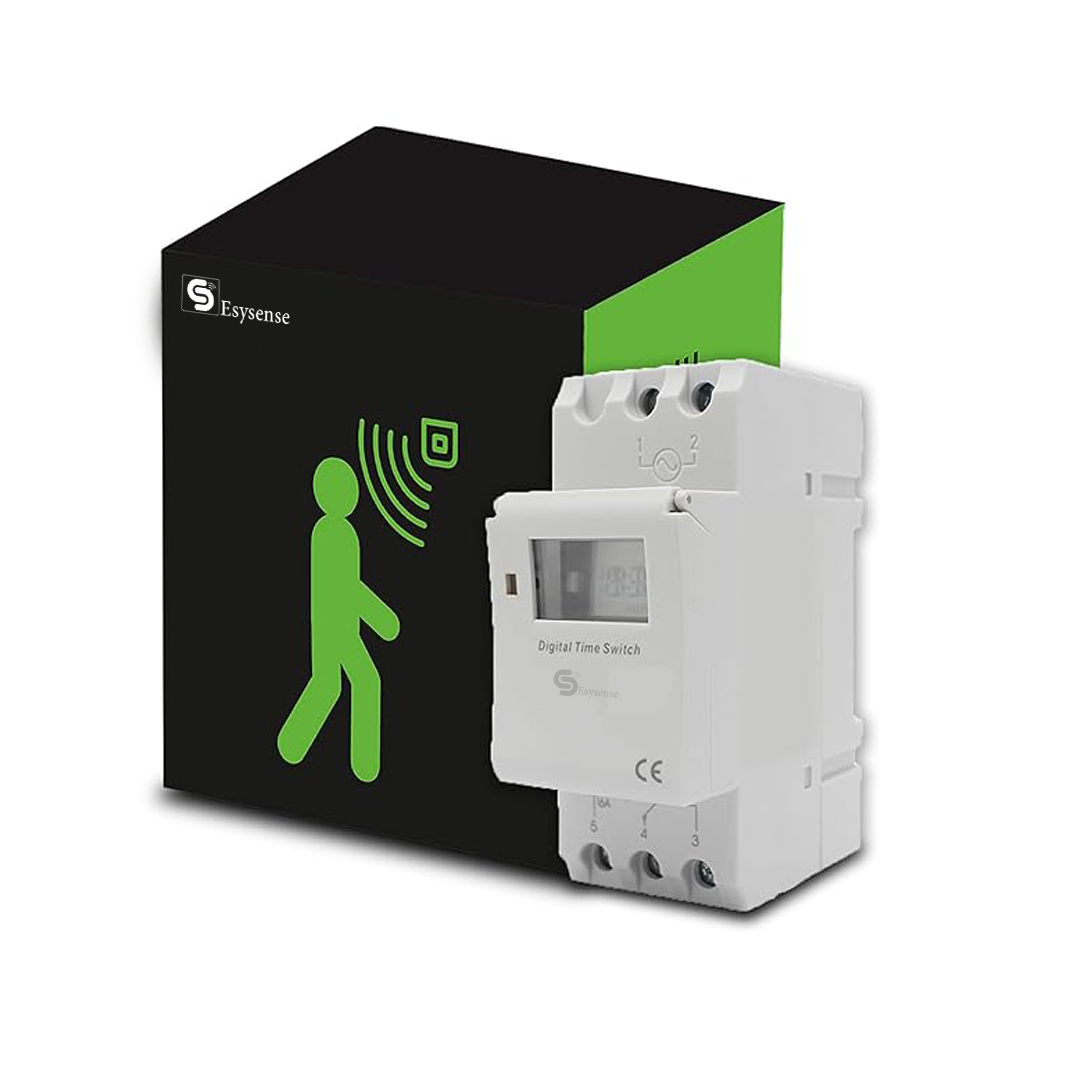

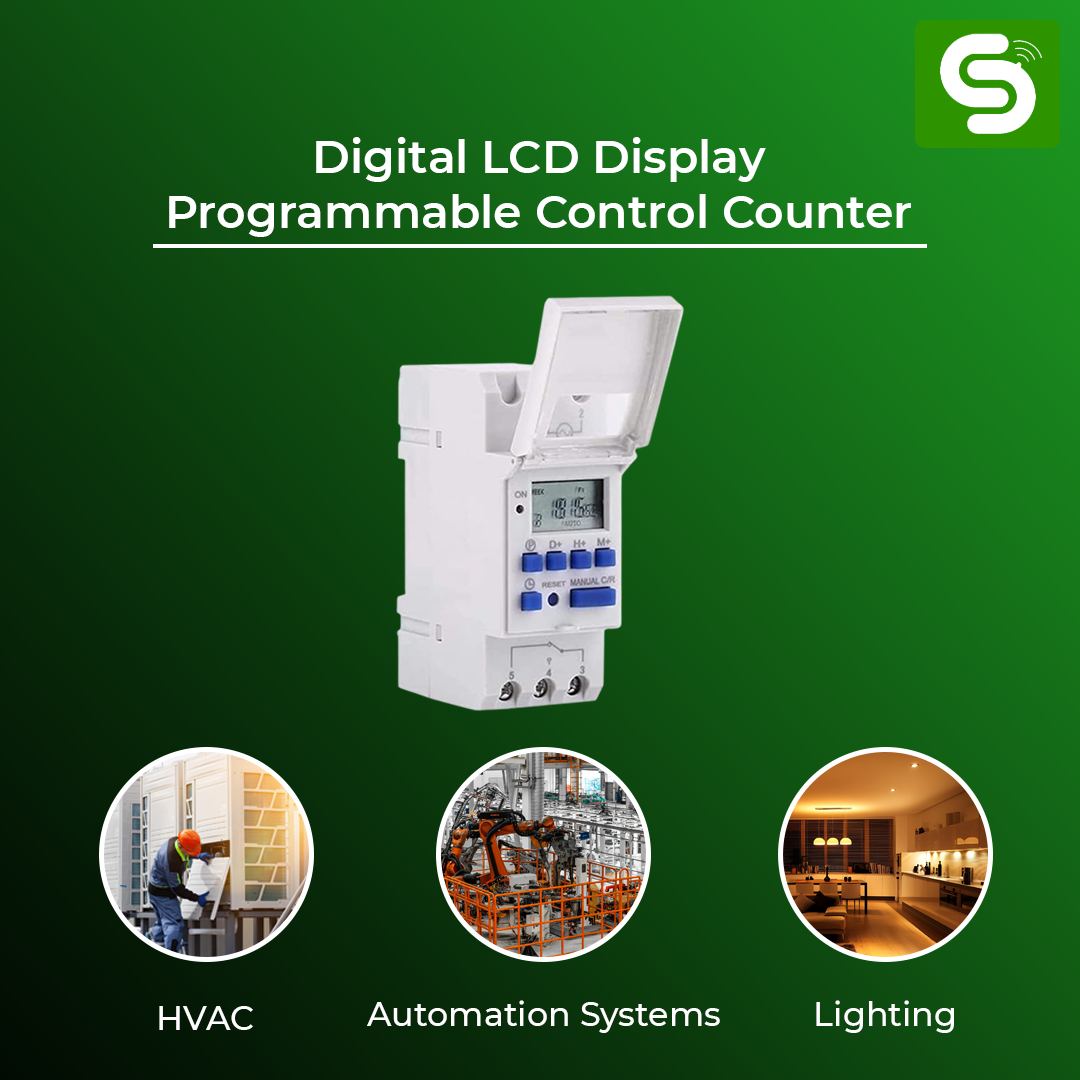

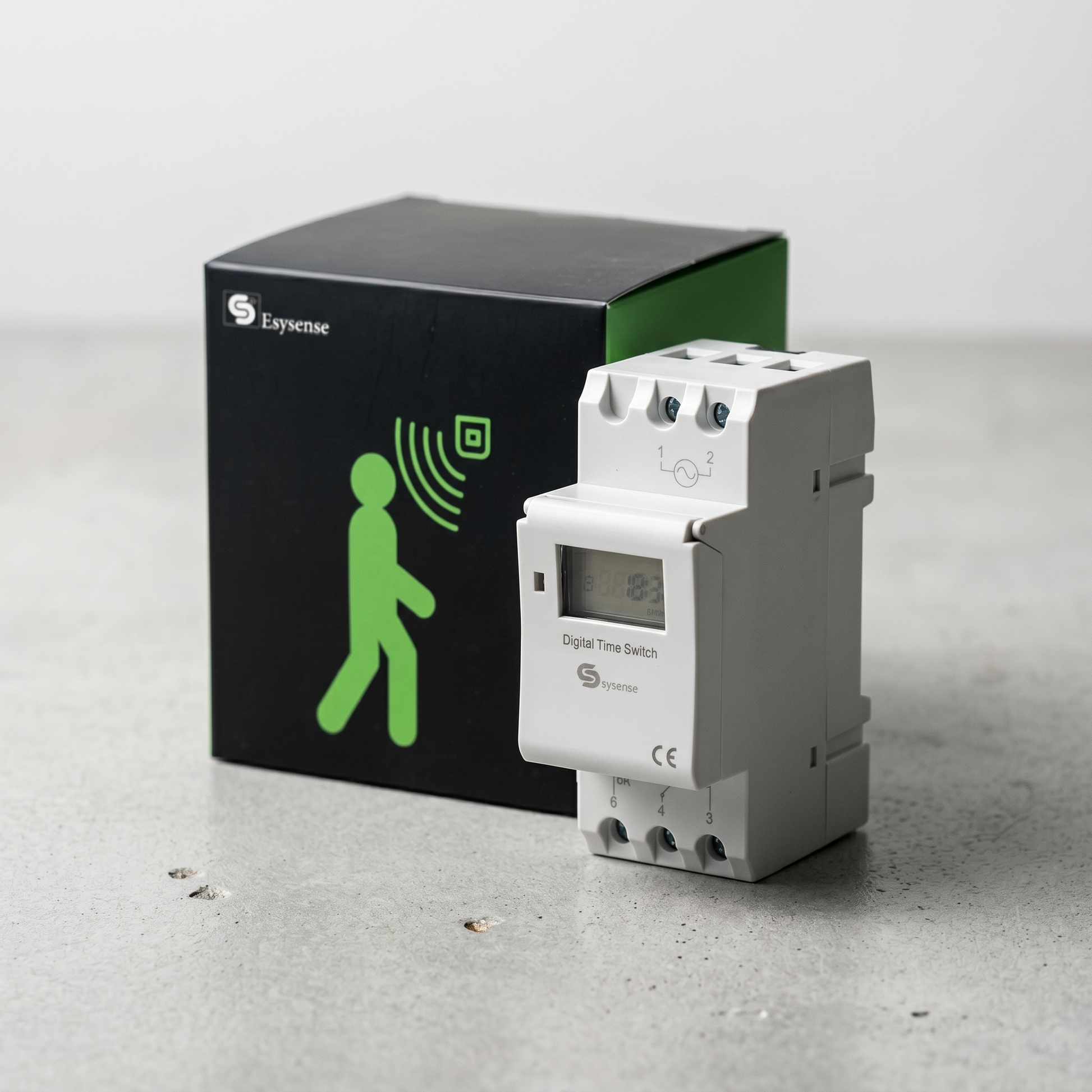

Digital LCD Display Programmable Control Counter/Time Timer Relay Switch: DIN Rail Type | ESY-TC32

Digital LCD Display Timer Relay Switch, designed for precision scheduling in residential and commercial environments. Operating on 220–270V AC with a robust 16A output capacity, this DIN rail–mountable device allows up to 16 programmable ON/OFF settings across 24-hour and 7-day cycles. Whether you're managing lighting, HVAC, or appliances, its NO/NC and potential-free contact design ensures flexible, reliable performance. The integrated lithium battery backup retains programs for up to 30 days during power interruptions, and its clear LCD display enables effortless programming. Compact and efficient, the ESY-TC32 brings intelligent timing control to your fingertips.

Technical Specifications:

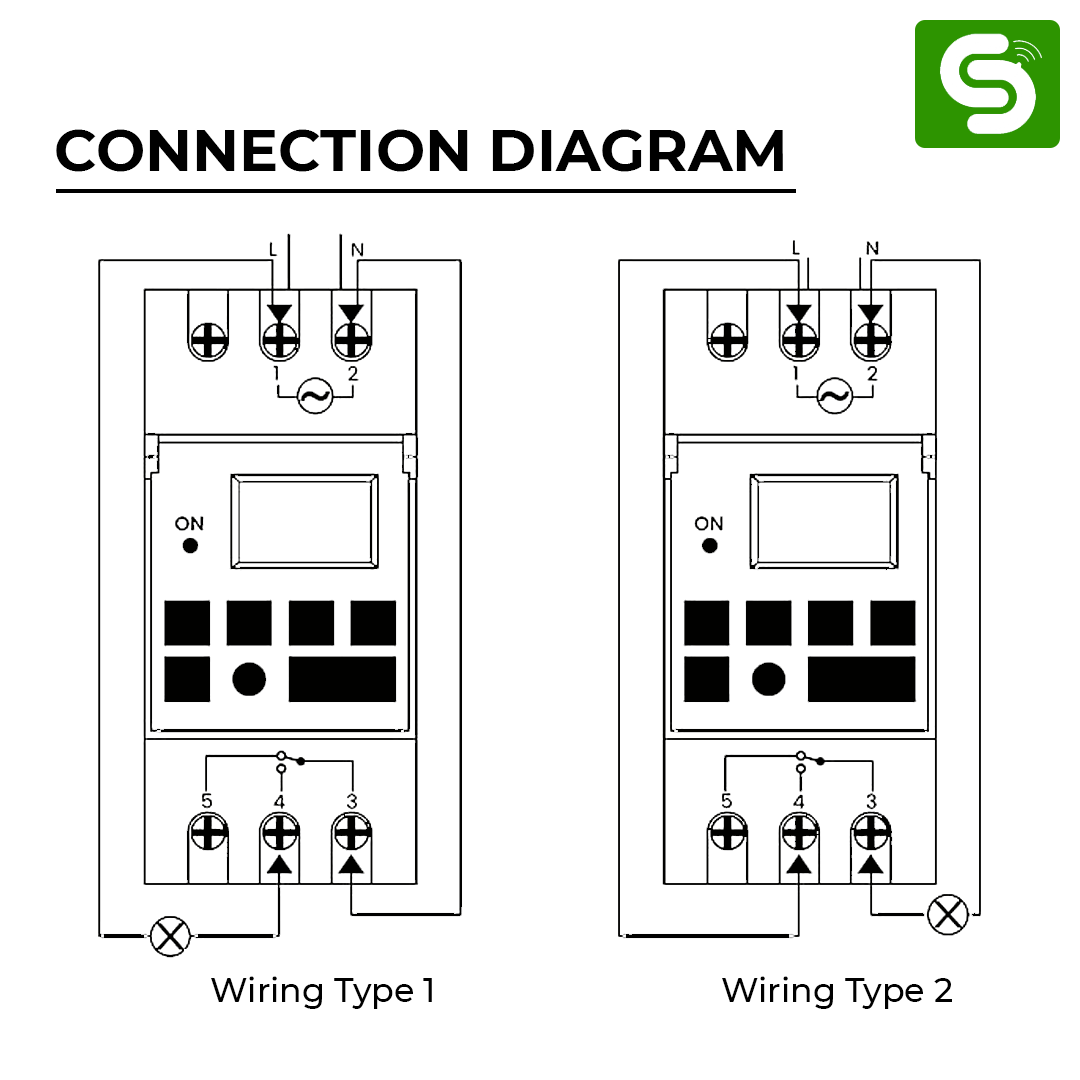

• NO/NC & Potential Free Contact
• 16 AMPS 220 - 270 Volt AC (5 pin)
• 24 Hours / 7 Days a week programmable
• Repeat Programs with 16 ON/OFF Settings, & Setting on/off manually
• Working Light Power Indicator clearly
• 1 min minimum setting time
• Lithium battery inside
• IP20 Protection level
• Weight: 450 Grams
• Marketed and Packed by : Esysense Tech Innovations Pvt Ltd
• Country of Origin : China
