Wall Mount PIR Motion Sensor | Wall Mount Motion Detector with Adjustable Settings | 180° Detection Coverage | Upto 8m Detection Range | ESY-P09

Wall Mount PIR Motion Sensor ESY-P09, a smart and adaptable solution for automatic lighting control. Designed for precise 180° motion detection and wall-mounted convenience, this sensor ensures responsive activation in corridors, staircases, entrances, and utility areas. With a coverage range of up to 8 meters at optimal temperatures, it intelligently adjusts lighting based on human presence—helping conserve energy without compromising comfort or safety.

Fully customizable to suit diverse environments, the ESY-P09 features adjustable delay timing and ambient light sensitivity, allowing you to fine-tune its behavior for daytime or night-time operations. Compact in size with discreet aesthetics, it integrates seamlessly into modern interiors while delivering robust functionality. Built to elevate smart automation in indoor lighting systems, it’s the perfect sensor for homes, offices, or commercial settings seeking smarter energy solutions.

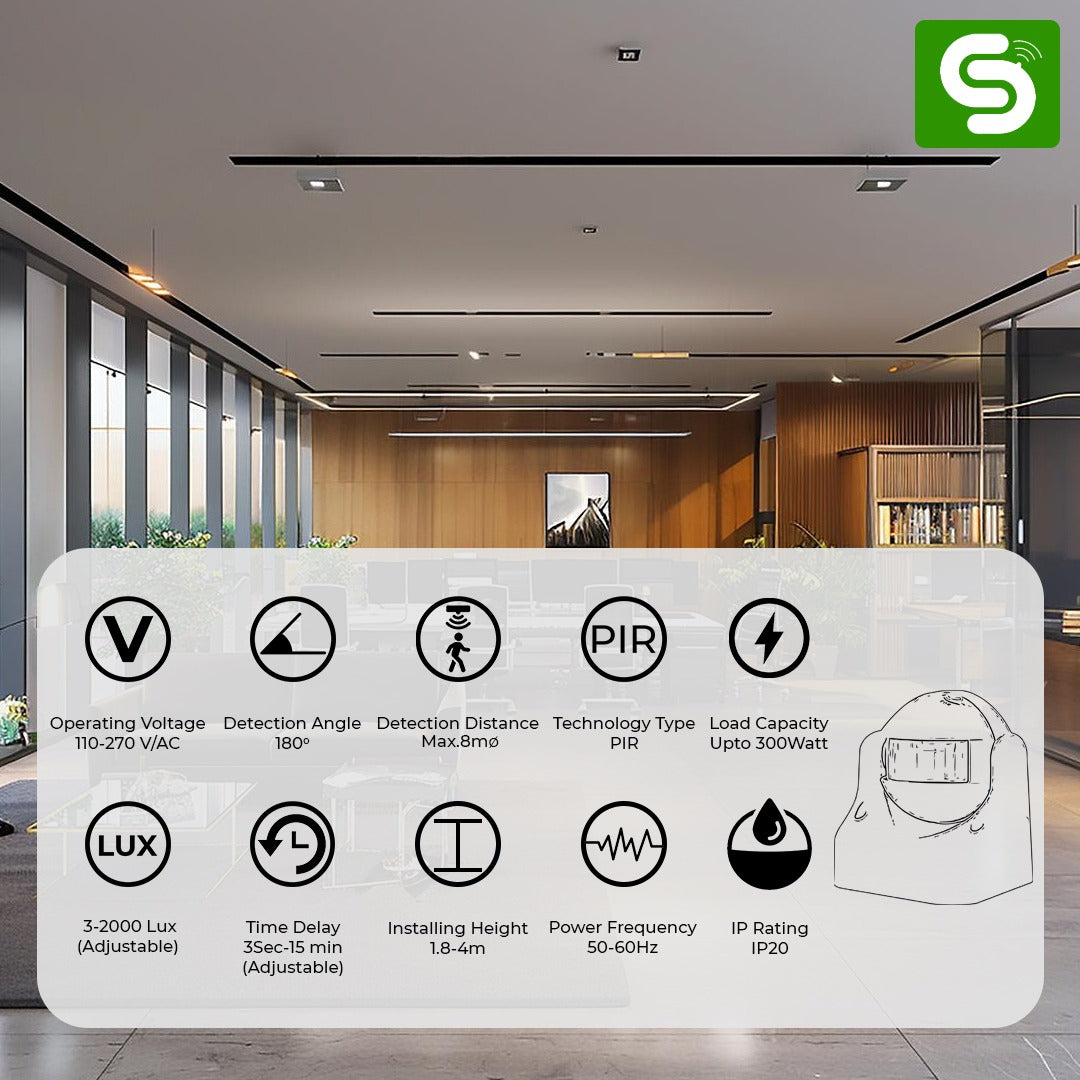

Technical Specifications:

• Model: ESY-P09
• Sensor Type: Passive Infrared (PIR) motion sensor

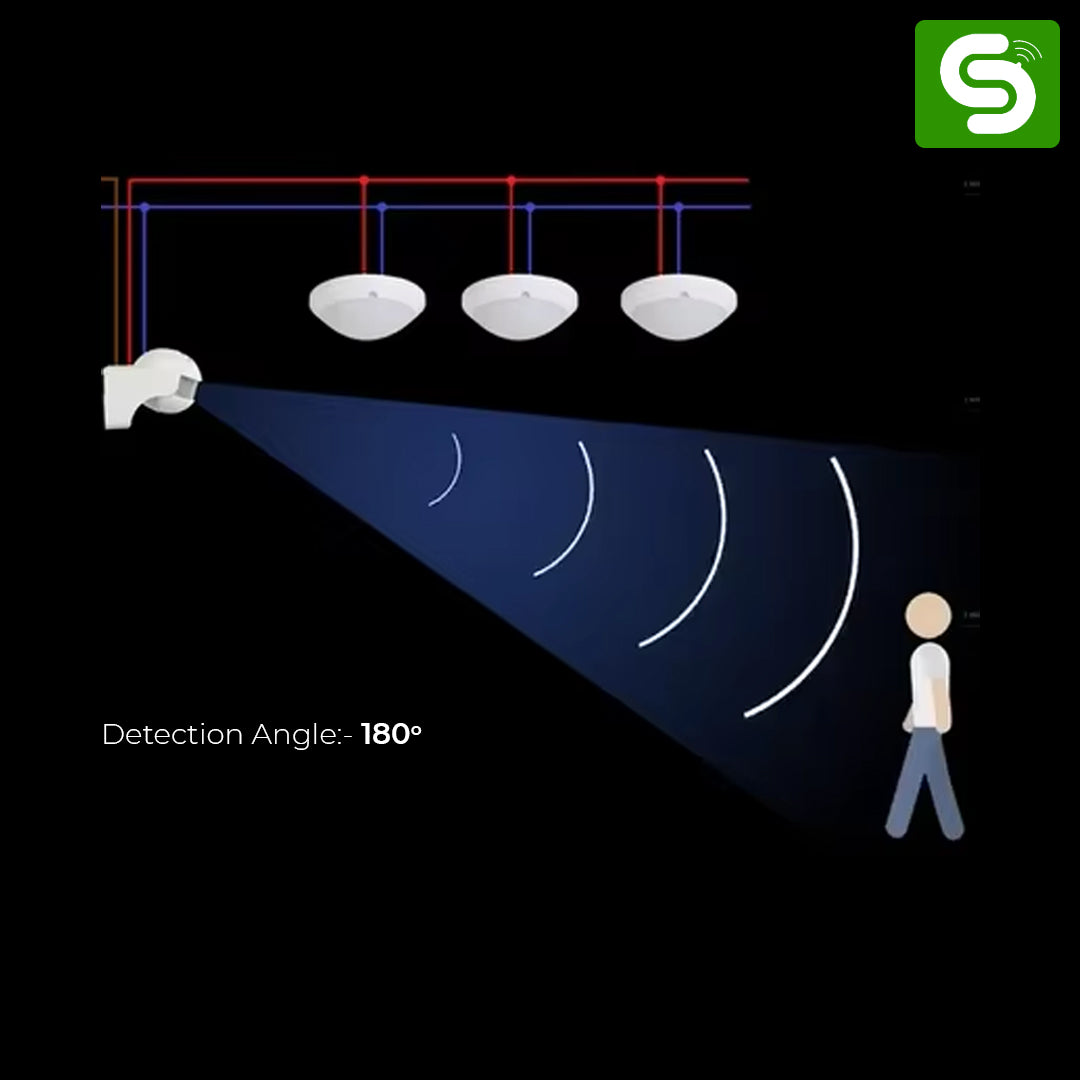

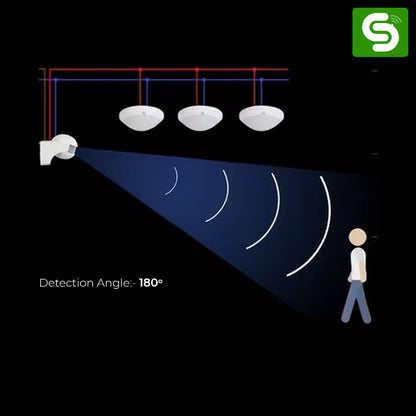

• Detection Angle: 180°
• Detection Range: Up to 8 meters (at <24°C)
• Power Supply: 110–270V AC, 50–60Hz
• Load Capacity: Up to 300W (resistive load)
• Time Delay: Adjustable from 3 seconds to 15 minutes
• Ambient Light Sensitivity: <3–2000 Lux (adjustable)
• Installation Type: Wall-mounted
• Mounting Height: 1.8 to 4 meters
• Protection Rating: IP20 (indoor use)

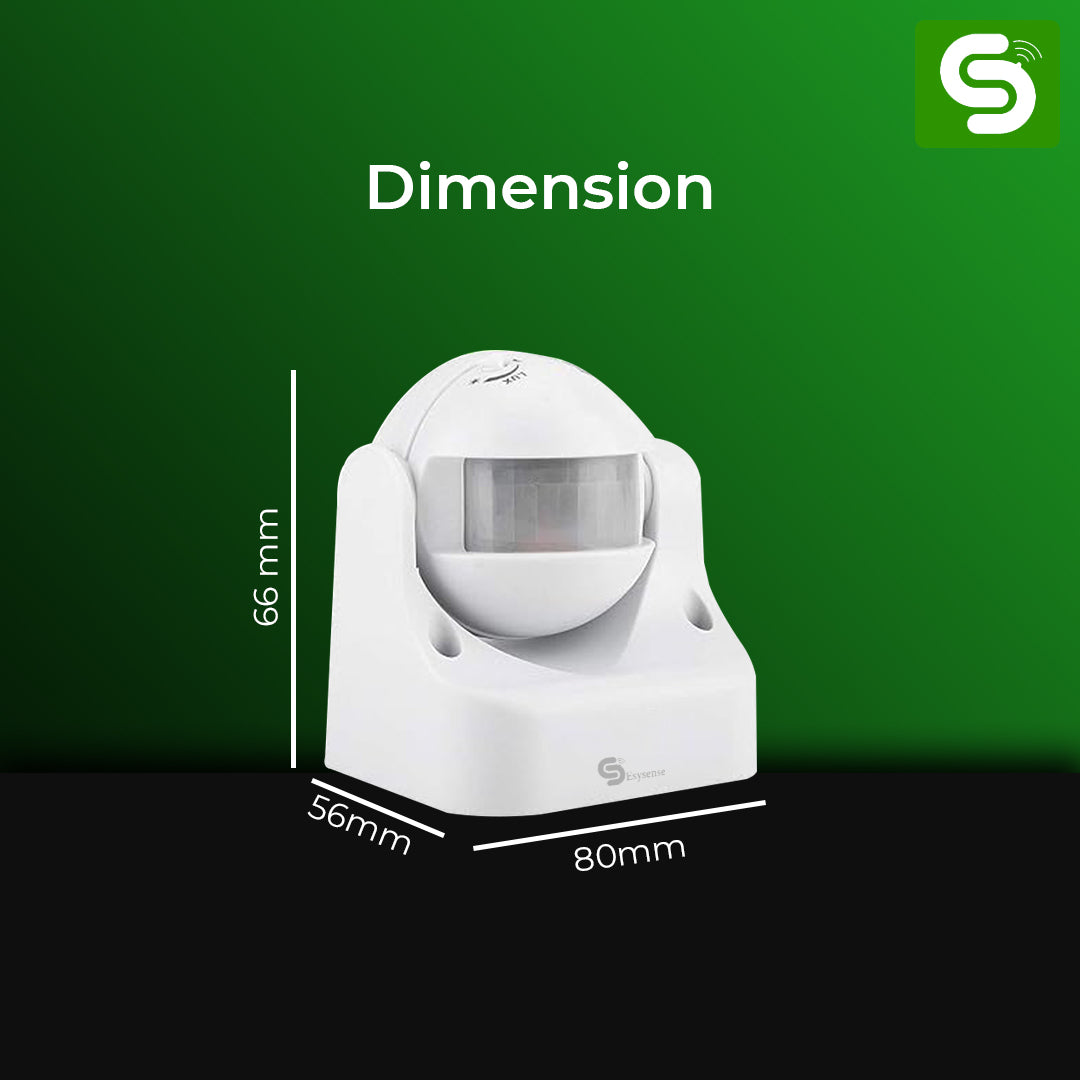

• Dimensions: 80mm (L) × 56mm (B) × 66mm (H)
